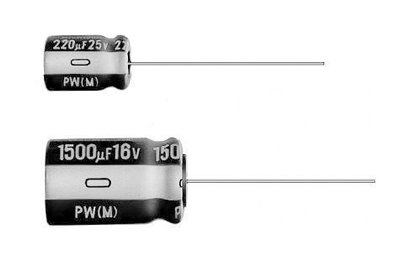

在一些安全系數要求比較高的領域中，使用直插電解電容是明智的選擇，其特有的屬性可以保障運行過程中的安全，避免任何因素而導致出現爆炸現象。紅寶電子小編推薦一款銷量較高的日系品牌Nichicon的直插電解電容：
In some fields with high safety factor, it is a wise choice to use the in-line electrolytic capacitor. Its unique properties can ensure the safety in the operation process and avoid explosion caused by any factors. Hongbao electronics recommends a Japanese brand Nichicon's in-line electrolytic capacitor:
品牌：Nichicon
Brand: Nichicon
封裝：DIP-∮16x31.5mm
Package: Dip - ∮ 16x31.5mm
產品種類：鋁電解電容器 - 徑向引線型
Product type: aluminum electrolytic capacitor radial lead type
端接類型：Radial
Termination type: radial
電容：2200 uF
Capacitance: 2200 UF
電壓額定值 DC：35 VDC
Voltage rating DC: 35 VDC
最大工作溫度：+ 105℃
Maximum working temperature: + 105 ℃
直徑：16 mm
Diameter: 16 mm
引線間隔：7.5 mm
Lead wire spacing: 7.5 mm
長度：31.5 mm
Length: 31.5 mm
壽命：8000 Hour
Life: 8000 hours
容差：20 %
Tolerance: 20%
紋波電流：3010 mA
Ripple current: 3010 Ma
最小工作溫度：- 55℃
Minimum operating temperature: - 55 ℃
引線類型：Straight
Lead type: straight
資格：AEC-Q200
Qualification: aec-q200
系列：UPW
Series: UPW
封裝：Bulk
Package: bulk
漏泄電流：4 uA
Leakage current: U4
損耗因數 DF：0.12
Loss factor DF: 0.12
單位重量：8.100 g
Unit weight: 8.100 G
直插類型的電解電容不僅穩定性強，可靠性強，而且安全性也是比較高的。
The direct inserted electrolytic capacitor is not only stable and reliable, but also safe.
正規電解電容廠家所生產的還會有專門的電容防爆孔，就是在電解電容的頂端刻的幾個溝槽，用于在特殊情況下(例如過壓，反向接入電路等)，電容內部壓力過高，電容的外殼會在防爆槽處裂開，將過多的壓力泄放，避免產生過于強烈的爆炸。
Regular electrolytic capacitor manufacturers will also have special capacitor explosion-proof holes, that is, several grooves are carved on the top of electrolytic capacitor, which is used for special circumstances (such as overvoltage, reverse access circuit, etc.), if the internal pressure of capacitor is too high, the shell of capacitor will crack at the explosion-proof tank, which will release excessive pressure to avoid excessive explosion.
